Best Selling Laminated Foam Poster Machine In Dubai-MF1700-M1 PLUS

The MF1700-M1 PLUS is the best choice in pneumatic hot laminators, equipped with new ABS housing for a modern and durable look. As an entry-level automatic machine, it can handle a wide range of demanding jobs, exceeding the needs of both printers and finishing solutions.

Rated 5/5 based on 372 customer reviews
Share:
Content

Foam posters are widely used and have a strong presence around us. The poster is a commonly used medium for advertising and marketing, which conveys information through the arrangement and combination of colors, words and graphics, and pictures, plus beautiful and creative typography.

Compared to a simple leaflet, posters carry a larger amount of information. To play a role in protecting pictures and enhancing their texture, many advertisements have adopted the method of laminating photos. Poster lamination, which has the largest market share, also attracts a lot of attention.

 pneumatic hot laminator

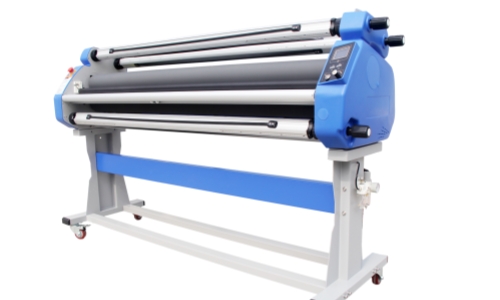

The MF1700-M1 PLUS is the best choice in pneumatic hot laminators, equipped with new ABS housing for a modern and durable look. As an entry series automatic machine, it can handle a wide range of demanding jobs, exceeding the needs of both printers and finishing solutions. With its outstanding performance, it can provide users with quality lamination at an affordable price.

In addition, users have the option of installing a vertical cutting system to meet different production needs. Overall, the MF1700-M1 PLUS is an excellent performance, reasonably priced, and feature-rich laminator for a variety of application scenarios.

vertical cutting

Features

New LCD panel control system

Optional safety vertical cutting

Automatic locking replaceable rollers

Front and rear equipped with control panel

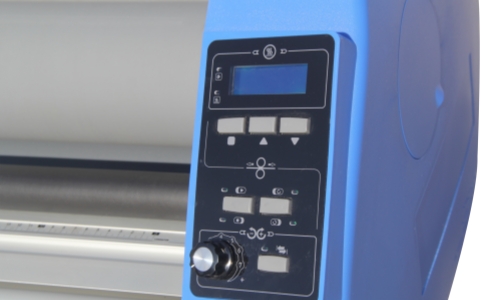

LCD panel control system

Notice

Keep rollers clear.

Do not scratch the rollers.

Lubricate the gears and chains.

Slowly run the machine when heated.

Lift the roller after finishing the lamination.

Friction mats should be checked and replaced regularly.

Inquiry


    More Roll laminator

    The simple MF1700-B5 PRO has pneumatic lifting system that can generate even pressure of rollers. With electrical running and rewinds ensure this laminating machine Roll-to-Roll capacity. Due to its 130mm silicon rollers, the operator will get a fancy finishes even without heating function.
    Details

    1
    2
    3
    4
    1.
    ABS new design
    Strong and good looking.
    2.
    Auto-locked exchangeable roll shafts
    It provides possibility exchangeable with each other, with auto-locked.
    3.
    Anti-static string
    Anti-static string can eliminate most static during fast lamination.
    4.
    130mm silicon rollers
    130mm silicon rollers for heavy duty work.
    Performance

    Front Panel
    Run or stop lamination
    Easy to adjust machine speed

    Air knob
    Roller up and down
    Simple lifting switch for better operation

    Auto-locked exchangeable roll shafts
    Upgraded shaft caps and holders can be easily locked and loaded media

    Premium silicon rollers
    130mm diameter silicon rollers for heavy duty lamination
    Parameter
    Entry Series MF1700-M1 PLUS MF1700-M1 MF1700-B5 PRO MF1700-B5 MF1600-B7
    Smart System ENTRY ENTRY None None None
    Front Panel Speed and temperature Speed and temperature None None None
    Rear Panel Speed Speed None None None
    Lamination Statistics None None None None None
    Auto Stop None None None None None
    Alarm None None None None None
    Foot Pedal Single foot pedal Single foot pedal Single foot pedal None None
    Max Lam Width 1630mm/64” 1630mm/64” 1630mm/64” 1630mm/64” 1520mm/59″
    Max Lam Thickness 28mm/1.1” 23mm/0.9” 28mm/1.1” 28mm/1.1” 28mm/1.1”
    Max Speed 9m/min 9m/min 6m/min Manual Manual
    Heating Top Heated Top Heated None None None
    Max Temp 60°C 60°C None None None
    Up and Down Pneumatic Hand Crank Pneumatic Pneumatic Pneumatic
    Roller Silicon(120mm) Silicon(120mm) Silicon(130mm) Silicon(130mm) Silicon(120mm)
    Trimmer Holder Option Option None None None
    Power Input 1600W 1600W 120W None None
    N.W. 150KGS 150KGS 115KGS 100KGS 100KGS
    Process

    Related Products
    MF1700-B5
    MF1700-B5
    Simple pneumatic lifting.
    Manual running with even pressure.
    Learn More >
    Quote Now >
    MF1700-M1PLUS
    MF1700-M1 PLUS
    Temperature, Speed display.
    Outstanding finishing with a reasonable budget.
    Learn More >
    Quote Now >
    MF1700-M1
    MF1700-M1
    Classic manual lifting heat-assist laminator.
    Unbeaten performances as an entry level machine.
    Learn More >
    Quote Now >
    Relevant News
    Long-reach cutter
    Makes cutter much easier
    Extended safety cutter for films and backing papers
    Learn More

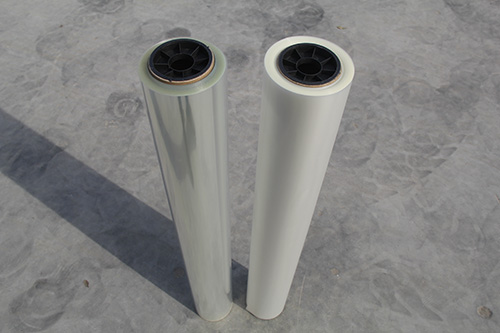

    MEFU PVC Film
