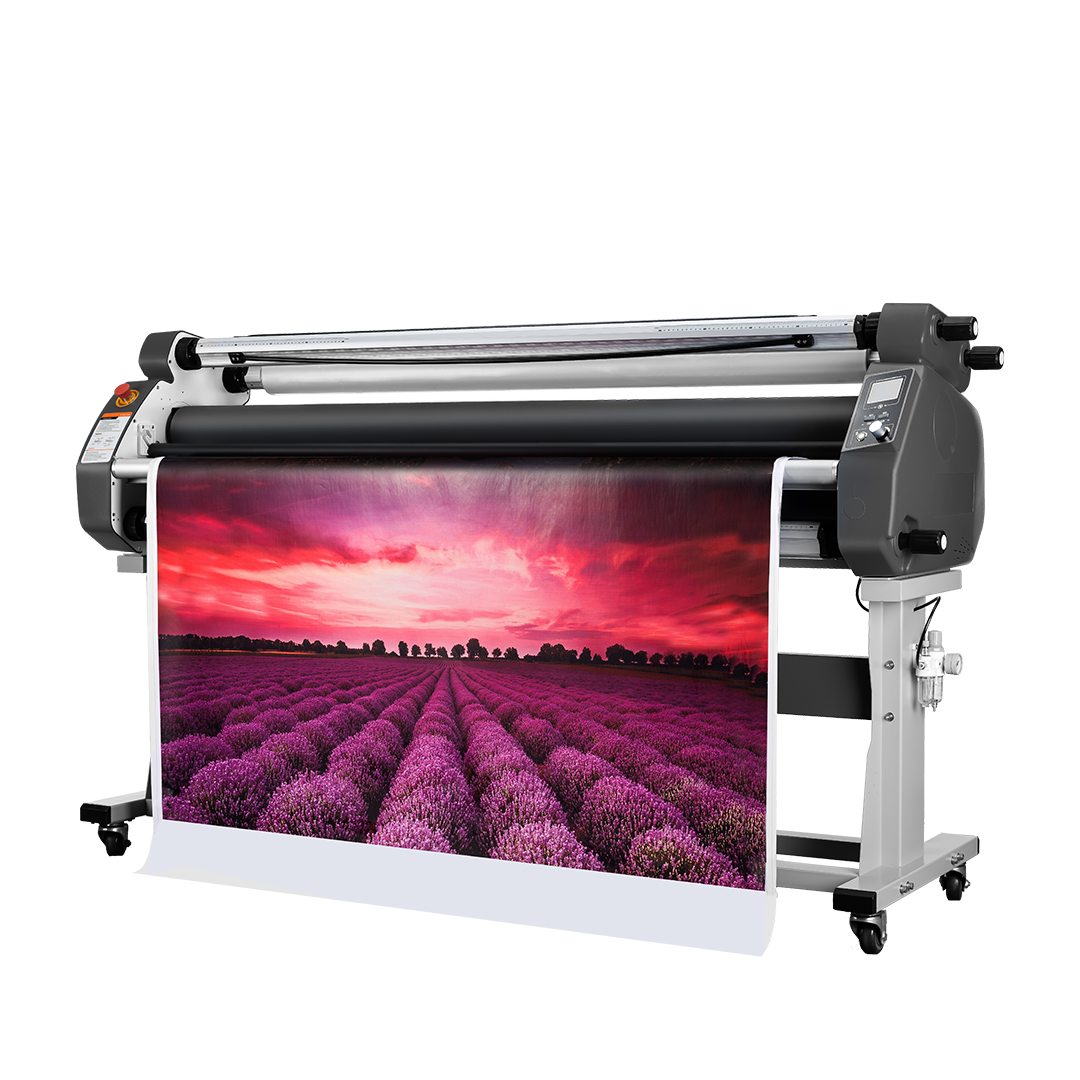

The MF1700-D4 is a pneumatic lift-type heat-assisted roll laminator designed to meet the high standards required for the finishing solution.
Specification
Smart System | Entry | Up and down | Pneumatic | |
Control Panel | Front and Rear | Roller | Silicon | |
Max Lam Width | 1630mm/64” | Roller Diameter | 120mm | |
Max Lam Thickness | 28mm/1.1” | Trimmer Holder | Optional | |
Max Speed | 9m/min | Power | 1600W | |
Heating | Top Heated | N.W. | 150KGS | |
Max Temp | 60 degrees | Dimension (LWH) | 2260x860x750mm |
In addition to the standard features found on other Entry Series laminators, the machine’s biggest advantage is the new ABS cover, which enhances its durability and safety and ensures stable operation in a variety of work environments.
The new design of the control panel makes operation easier, allowing the user to easily monitor the machine’s operating status, including key parameters such as speed and temperature. This intuitive interface design not only improves ease of operation but also reduces errors caused by improper operation, ensuring a smooth lamination process.
Want to start laminating? Actions!
