Lefu semi auto roll lamintor with alloy hand crank LF1700-D3

LEFU semi-auto LF1700-D3 can satisfy most possibilities that under 1630mm/64’’. It is really an inexpensive option for the applications that needs heated up to 120℃.

Stronger frame, large diameter silicon rollers, steadily pressure system etc, provide more accurate operation than ever. Safety with Laser eye and emergency buttons provide 2 levels of protection for operators.

MEFU Roll Laminator MF1700-M1 PLUS Pneumatic lifting roller

MF1700-M1 PRO pneumatic heat assist cold roll laminator

Content

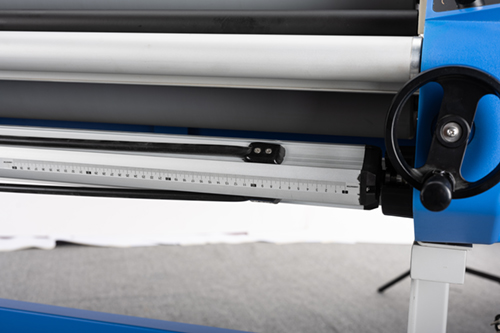

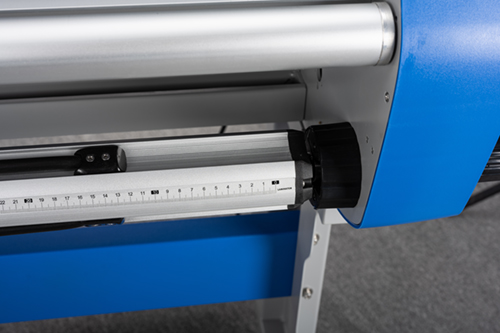

1.Alloy classic hand crank

Roller up and down for both sides even pressure

Adjusting height for different substrates

Extra pressure can be generated by lift down the crank

2.Premium silicon rollers

130mm diameter silicon rollers for heavy duty lamination

Top Heated warm lamination for better melt glue and good finishing

Options for hot laminating, mounting and encapsulating

3.Tilted bigger front working table

Easy for loading and unloading materials

Anti-tilted configuration for good finishing

Emergency button for safety operation

4.Anti-static string

Anti-static string is efficient way to ease static

Upgraded shaft caps and holders can be easily locked and loaded media

Max Lam Width	1630mm/64”
Max Lam Thickness	23mm/0.9”
Max Speed	12m/min
Max Temp	120℃
Up and down	Hand Crank
Heating	Top Heated
Roller	Silicon
Trimmer	None
Power input	2200W
N.W	200KGS

More info pls contact to cindy@mefu.cn
