MEFU Roll Laminator MF1700-M5 Auto-locked exchangeable shafts

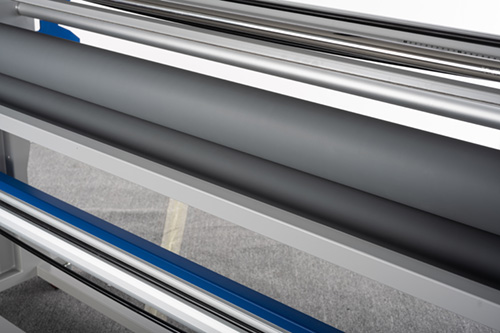

One of the best seller MF1700-M5 has a lamination width up to 1.63m/64’’, this size laminator covers the most common finishing requirements with high quality results. Premium silicon rollers ensure life of machine and and trouble free. Unique anti-tilt and anti-fold system ensures clear output. Its simple design makes it extremely easy to use and provide high quality laminating results.

MF1700-B5 PRO cold pvc film lamination machine

MEFU Flatbed Applicator Premium MF-B4 Side-tray & Heating system

Content

Parameter

Premium Series	MF1700-A1 PRO	MF1700-M1 PRO	MF1700-F1	MF1700-M5
Smart System	ENTRY	ENTRY	None	None
Front Panel	Speed and temperature	Speed and temperature	Temperature	Temperature
Rear Panel	Speed	Speed	None	None
Lamination Statistics	Yes	Yes	None	None
Auto Stop	None	None	None	None
Alarm	None	None	None	None
Foot Pedal	Single foot pedal	Single foot pedal	Single foot pedal	Single foot pedal
Max Lam Width	1630mm/64”	1630mm/64”	1630mm/64”	1630mm/64”
Max Lam Thickness	28mm/1.1”	28mm/1.1”	23mm/0.9”	23mm/0.9”
Max Speed	15m/min	12m/min	12m/min	12m/min
Heating	Top Heated	Top Heated	Top Heated	Top Heated
Max Temp	60°C	60°C	120°C	60°C
Up and Down	Pneumatic	Pneumatic	Hand Crank	Hand Crank
Roller	Silicon(130mm)	Silicon(130mm)	Silicon(130mm)	Silicon(130mm)
Trimmer Holder	2 Single and 1 Double Central blades	2 Single and 1 Double Central blades	None	None
Power Input	1600W	1600W	2800W	1600W
N.W.	200KGS	150KGS	200KGS	200KGS

More info please contact: info@mefu.cn
