MF1700-M1 LITE The entry level Roll-to-Roll laminator

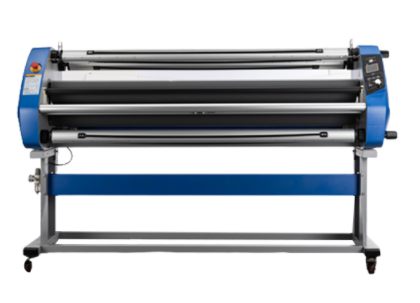

The entry level Roll-to-Roll laminator MF1700-M1 LITE with pneumatic lifting system, it is a ideal for laminating and mounting application of signages and graphics up to 1630mm/64” wide. It gives the extra feature of a heat assist top roller. Auto-locked exchangeable roll shafts, easy for rolls loading and unloading.
Contact US
Get Price
Share:
Content
Parameter
Entry Series | MF1700-M1 PLUS | MF1700-M1 LITE | MF1700-M1 | MF1700-B5 PRO | MF1700-B5 | MF1600-B7 |
Smart System | ENTRY | None | ENTRY | None | None | None |
Front Panel | Speed and temperature | Temperature | Speed and temperature | None | None | None |
Rear Panel | Speed | None | Speed | None | None | None |
Lamination Statistics | None | None | None | None | None | None |
Auto Stop | None | None | None | None | None | None |
Alarm | None | None | None | None | None | None |
Foot Pedal | Single foot pedal | Single foot pedal | Single foot pedal | Single foot pedal | None | None |
Max Lam Width | 1630mm/64” | 1630mm/64” | 1630mm/64” | 1630mm/64” | 1630mm/64” | 1520mm/59″ |
Max Lam Thickness | 28mm/1.1” | 28mm/1.1” | 23mm/0.9” | 28mm/1.1” | 28mm/1.1” | 28mm/1.1” |
Max Speed | 9m/min | 9m/min | 9m/min | 6m/min | Manual | Manual |
Heating | Top Heated | Top Heated | Top Heated | None | None | None |
Max Temp | 60°C | 60°C | 60°C | None | None | None |
Up and Down | Pneumatic | Pneumatic | Hand Crank | Pneumatic | Pneumatic | Pneumatic |
Roller | Silicon(120mm) | Silicon(120mm) | Silicon(120mm) | Silicon(130mm) | Silicon(130mm) | Silicon(120mm) |
Trimmer Holder | Option | Option | Option | None | None | None |
Power Input | 1600W | 1600W | 1600W | 120W | None | None |
N.W. | 150KGS | 140KGS | 150KGS | 115KGS | 100KGS | 100KGS |
