Roll Laminator

MF1700-B5

Simple pneumatic lifting.
Manual running with even pressure.
Pneumatic lifting roller
Manual running
130mm Silicon roller
Two lamination rolls
MF1700-B5
Brief
Details
Performance
Parameter
Process
Quote Now >
MF1700-M1 PRO
MF1700-M1 PRO
MF1700-M1 PRO
MF1700-M1 PRO
MF1700-M1 PRO
MF1700-M1 PRO
MF1700-M1 PRO
MF1700-M1 PRO
MF1700-M1 PRO
MF1700-M1 PRO
MF1700-M1 PRO
MF1700-M1 PRO

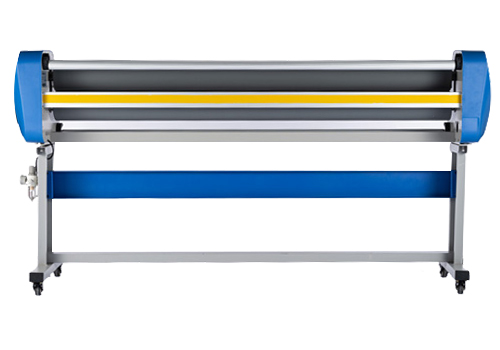

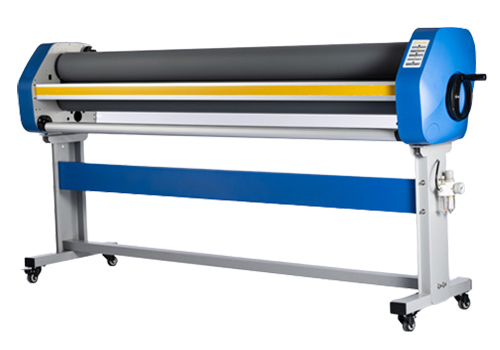

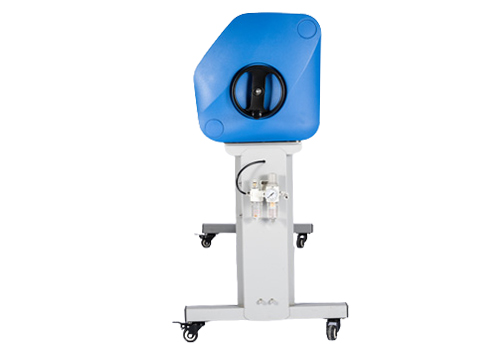

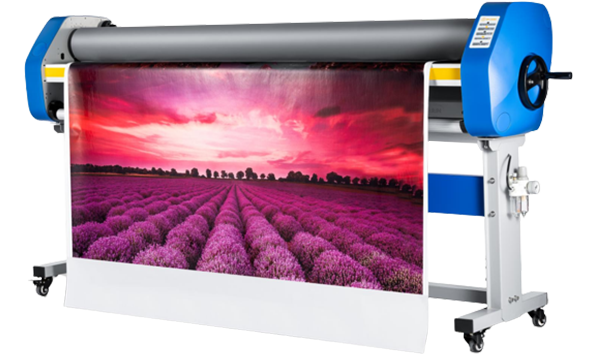

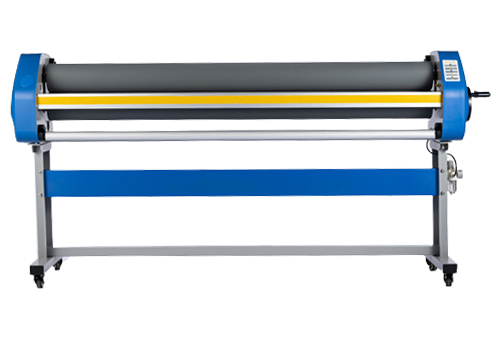

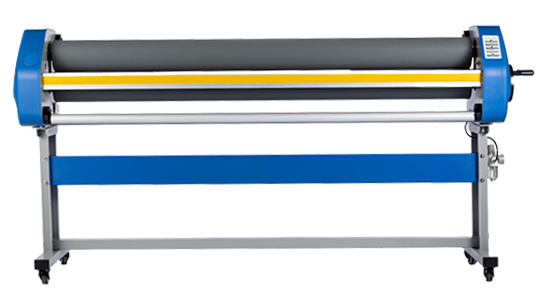

MF1700-B5
The basic level B5 is a brand new cold laminator, equipped with Pneumatic lifting which ensures more even pressure and easier operate compare to the traditional manual machine.
Details
1
2
3
4
1.
ABS new design
Strong and good looking.
2.
130mm silicon rollers
130mm silicon rollers for heavy duty work
3.
Classic hand crank
Convenient manual operation
4.
Oil water separator
Provide stable lamination pressure
Performance
Alloy classic hand crank
Manual operation for speed control
Air knob
Roller up and down
Simple lifting switch for better operation
Parameter
Entry Series MF1700-M1 PLUS MF1700-M1 LITE MF1700-M1 MF1700-B5 PRO MF1700-B5 MF1600-B7
Smart System ENTRY None ENTRY None None None
Front Panel Speed and temperature Temperature Speed and temperature None None None
Rear Panel Speed None Speed None None None
Lamination Statistics None None None None None None
Auto Stop None None None None None None
Alarm None None None None None None
Foot Pedal Single foot pedal  Single foot pedal  Single foot pedal  Single foot pedal  None  None
Max Lam Width 1630mm/64'' 1630mm/64'' 1630mm/64'' 1630mm/64'' 1630mm/64'' 1520mm/59"
Max Lam Thickness 28mm/1.1'' 28mm/1.1'' 23mm/0.9'' 28mm/1.1'' 28mm/1.1'' 28mm/1.1''
Max Speed 9m/min 9m/min 9m/min 6m/min Manual Manual
Heating Top Heated Top Heated Top Heated None None None
Max Temp 60°C 60°C 60°C None None None
Up and Down Pneumatic Pneumatic Hand Crank Pneumatic Pneumatic Pneumatic
Roller Silicon(120mm) Silicon(120mm) Silicon(120mm) Silicon(130mm) Silicon(130mm) Silicon(120mm)
Trimmer Holder Option Option Option None None None
Power Input 1600W 1600W 1600W 120W None None
N.W. 150KGS 140KGS 150KGS 115KGS 100KGS 100KGS
Process
