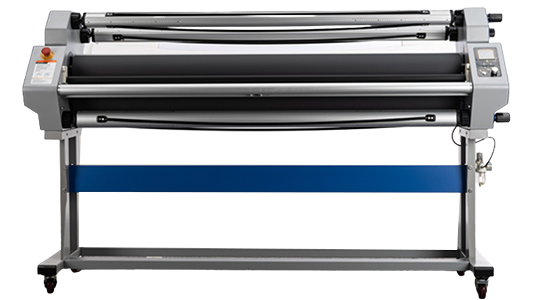

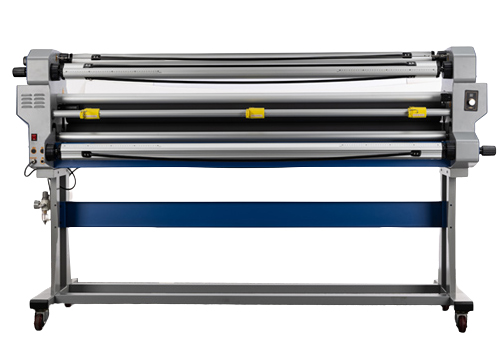

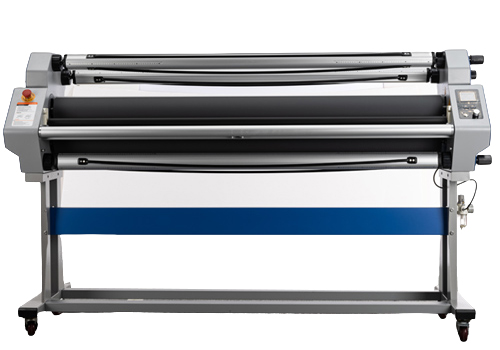

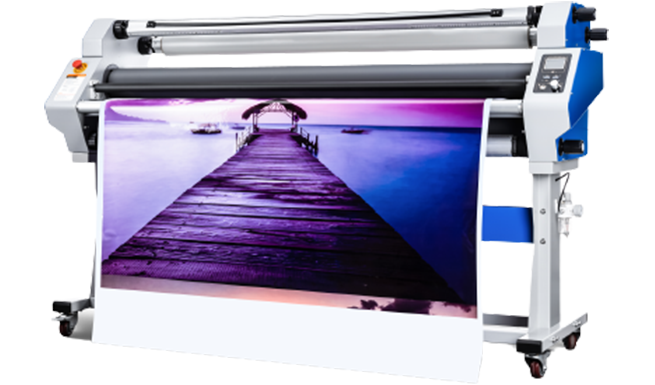

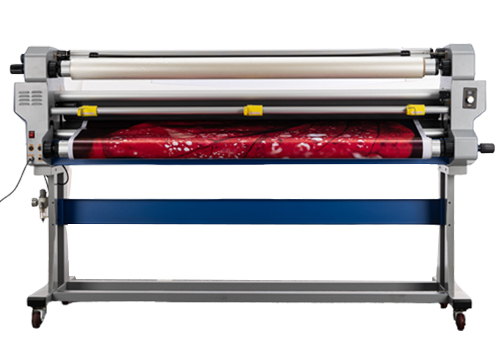

MF1700-M1 PRO

MF1700-M1 PRO is fully auto heat-assist laminator for signage and graphics. This premium machine’s vertical cutting system can cut the wasted edges with efficiency during lamination. Pneumatic up and down, Top speed 12m/min, you got everything here.

Details

Smart Entry System

Easy to check speed, temperature, and Lamination statistics.

Vertical cutting function

Fully adjust the position, its safety tungsten blades can be applied over 15000m with sharp cutting.

Auto-locked exchangeable shaft

Upgraded shaft caps and holders can be easily locked and loaded medias.

Rear control panel

Rear control unit to supervise the lamination at the first beginning.

Performance

Smart Entry System —— Front Panel

Speed, temp, and lamination statistics

Easy to check lamination record in 30 days

Roller up and down for even pressure

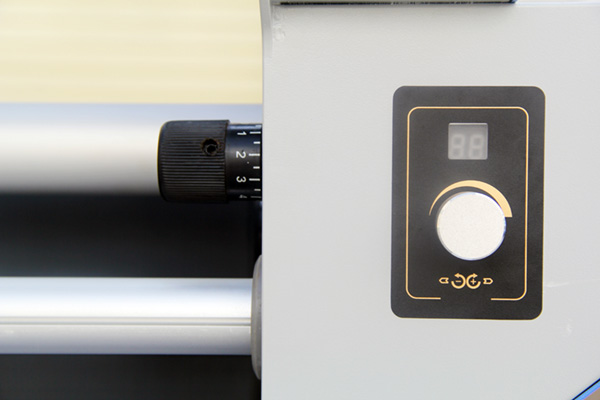

Smart Entry System —— Rear Panel

Run or stop lamination for easy operation

Rear speed adjustment and statistics to better precisely control speed

Rear working table

Fully position adjustable cutters for precise cutting

Manual active cutting roll to achieve vertical cutting function

Safety sensor eyes for safe operation

Safety vertical cutter

2 Single and 1 Double central blade

Upgraded with two paddles on 2 single holders

Durable tungsten steel blades

Premium silicon rollers

130mm diameter silicon rollers for heavy duty lamination

Top Heated warm lamination better melt glue on the film

Options for hot lamination to meet different needs

Anti-static string

Anti-static string is efficient way to ease static

Upgraded shaft caps and holders can be easily locked and loaded media

Parameter

Premium Series	MF1700-A1 PRO	MF1700-M1 PRO	MF1700-F1	MF1700-M5
Smart System	ENTRY	ENTRY	None	None
Front Panel	Speed and temperature	Speed and temperature	Temperature	Temperature
Rear Panel	Speed	Speed	None	None
Lamination Statistics	Yes	Yes	None	None
Auto Stop	None	None	None	None
Alarm	None	None	None	None
Foot Pedal	Single foot pedal	Single foot pedal	Single foot pedal	Single foot pedal
Max Lam Width	1630mm/64''	1630mm/64''	1630mm/64''	1630mm/64''
Max Lam Thickness	28mm/1.1''	28mm/1.1''	23mm/0.9''	23mm/0.9''
Max Speed	15m/min	12m/min	12m/min	12m/min
Heating	Top Heated	Top Heated	Top Heated	Top Heated
Max Temp	60°C	60°C	120°C	60°C
Up and Down	Pneumatic	Pneumatic	Hand Crank	Hand Crank
Roller	Silicon(130mm)	Silicon(130mm)	Silicon(130mm)	Silicon(130mm)
Trimmer Holder	2 Single and 1 Double Central blades	2 Single and 1 Double Central blades	None	None
Power Input	1600W	1600W	2800W	1600W
N.W.	200KGS	150KGS	200KGS	200KGS
