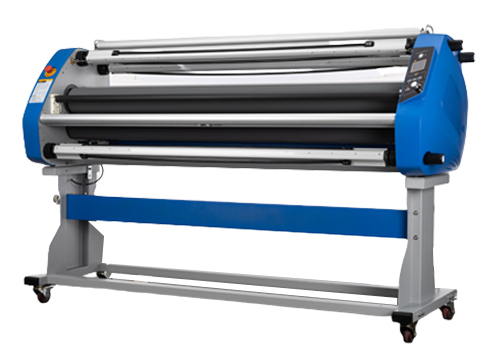

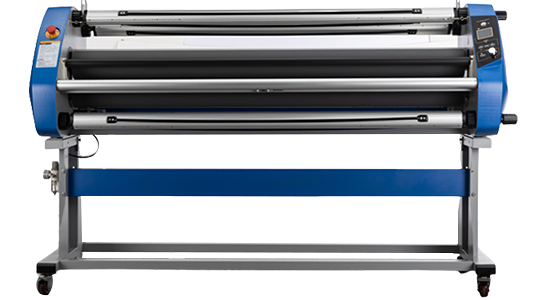

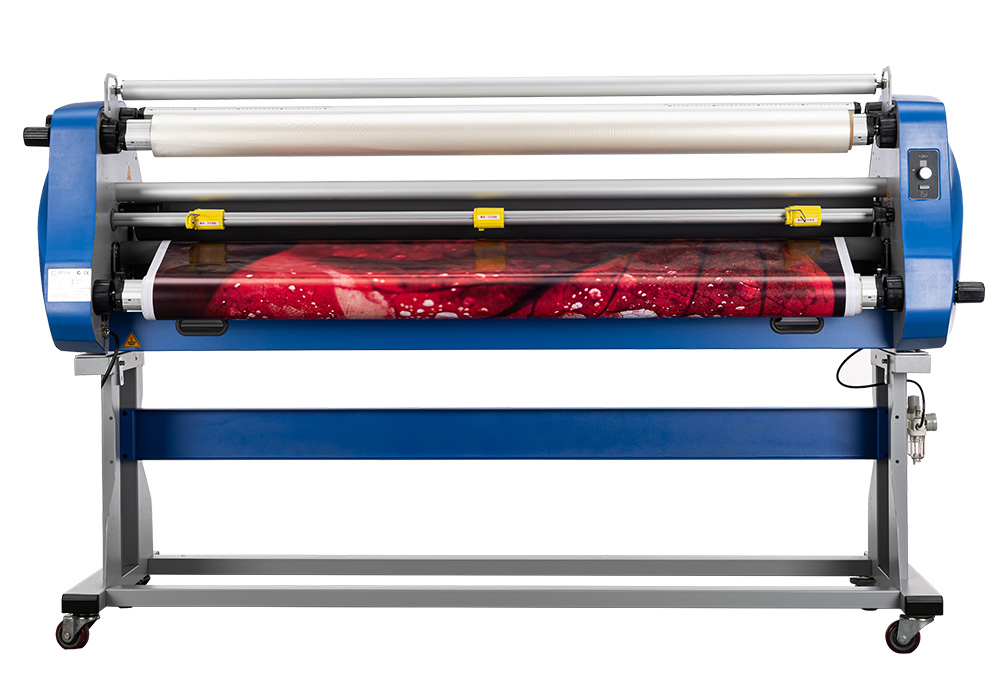

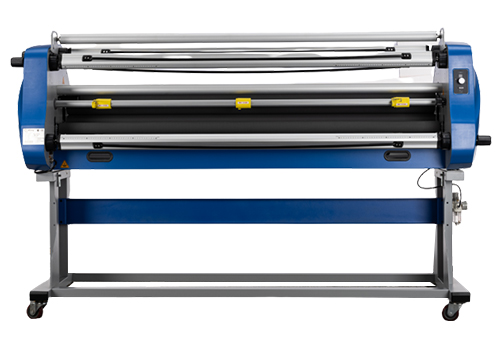

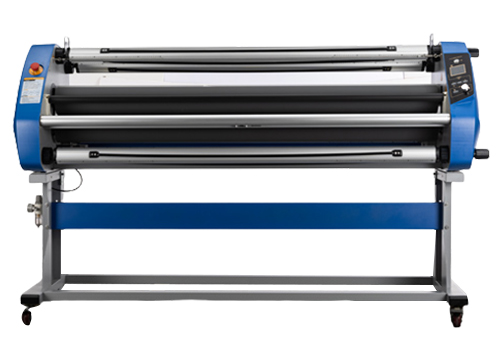

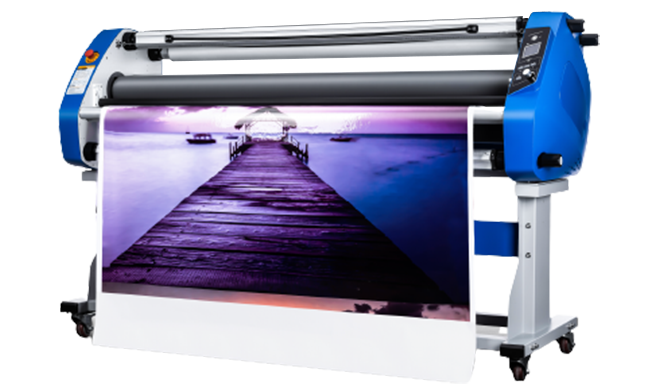

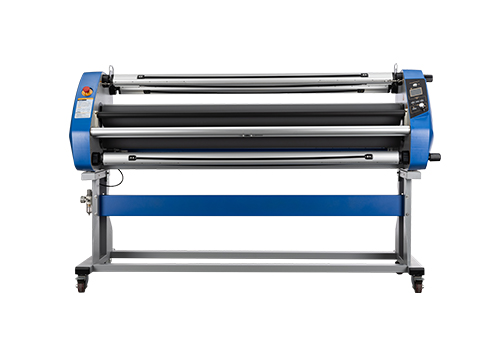

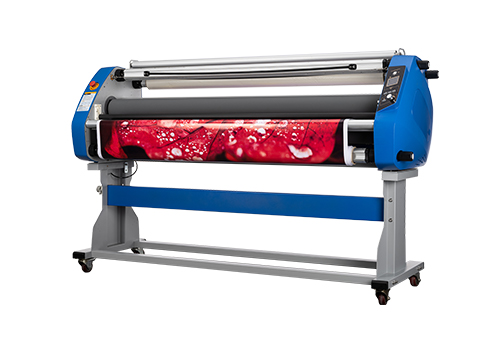

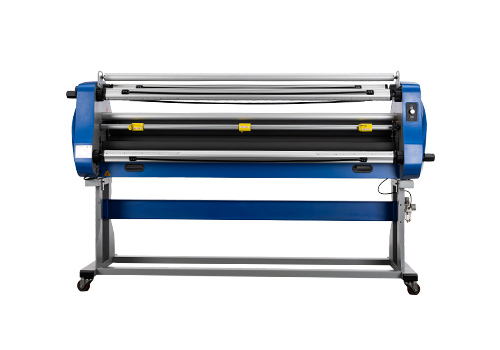

MF1700-C3

The best seller MF1700-C3 with new designing and functions provides unbeaten performance. This super machine can run up to 20m/min with a wide range of medias. Suitable for business that are looking to build in extra capacity and more versatility.

Its new upgraded panel with Speed, Temperature and Lamination statistics display provides clear and easier operation.

Details

Smart Entry System

Easy to check speed, temperature, and Lamination statistics.

Auto-locked exchangeable shaft

Upgraded shaft caps and holders can be easily locked and loaded medias. Anti-static string.

Precise vertical cutters

Fully adjustable cutter position. Durable tungsten steel blades.

Rear control panel

Easier for speed adjust and cutter active.

Performance

Smart Entry System —— Front Panel

Speed, temp, and lamination statistics, easy to check figures of set temp, real temp, and button speed, as well as find your lamination records in 30 days

Date and time display

Roller up and down

Smart Entry System —— Rear Panel

Run or stop lamination

Speed statistics, show button speed, which is convenient to adjust machine speed

Active cutter device, easy to use

Pneumatic active cutting rod

Active cutters by button on rear panel

Fully position adjustable cutters

Aluminum alloy cutting rod

Safety vertical cutter

Equipped with 3 trimmer holders, 2 Single and 1 Double central blade

Upgraded with two paddles on 2 single trimmer holders

Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m

Premium silicon rollers

130mm diameter silicon rollers provide heavy duty work and good finishes

Top Heated warm lamination

Options for hot laminating, mounting and encapsulating

Anti-static string

Anti-static string is efficient way to ease static

Upgraded shaft caps and holders can be easily locked and loaded media

Parameter

Pro Series	MF1700-F3	MF1700-F2	MF1700-C3
Smart System	PRO	ENTRY (Option for PRO)	ENTRY (Option for PRO)
Front Panel	Speed and temperature	Speed and temperature	Speed and temperature
Rear Panel	Speed	Speed	Speed
Lamination Statistics	Yes	Yes	Yes
Auto Stop	Yes	None	None
Alarm	Yes	None	None
Foot Pedal	Multi-functions dual foot pedal	Single foot pedal	Single foot pedal
Max Lam Width	1630mm/64''	1630mm/64''	1630mm/64''
Max Lam Thickness	28mm/1.1''	28mm/1.1''	28mm/1.1''
Max Speed	50m/min	20m/min	20m/min
Heating	Top Heated	Dual or Top Heated	Top Heated
Max Temp	60°C	120°C or 60°C	60°C
Up and Down	Pneumatic	Pneumatic	Pneumatic
Roller	Silicon(150mm)	Silicon(130mm)	Silicon(130mm)
Trimmer Holder	2 Single and 1 Double Central blades	2 Single and 1 Double Central blades	2 Single and 1 Double Central blades
Power Input	2000W	5200W/2800W/1600W	1600W
N.W.	500KGS	260KGS	180KGS

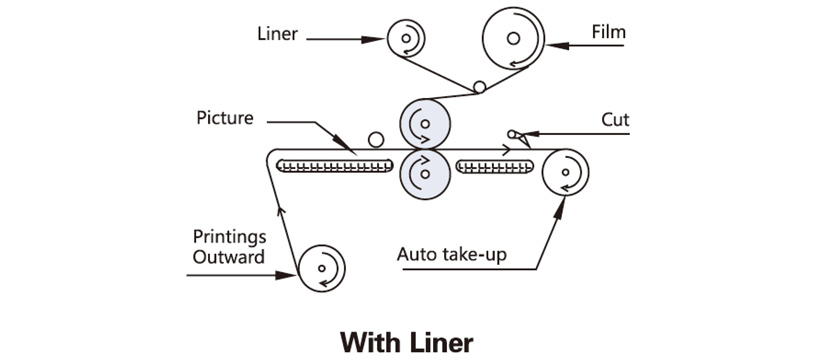

Process
