Roll Laminator

MF1700-F1 PLUS

Industrial laminating & cutting machine.
Advanced laser positioning and cutting device.
Smart PRO System
Swing in & out air shafts
Laser tracking cutting
Industrail performance
Brief
Details
Performance
Parameter
Process
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS
MF1700-F1 PLUS

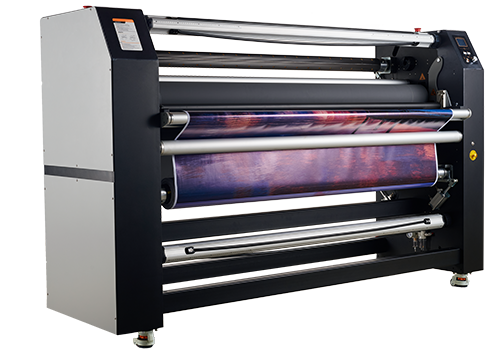

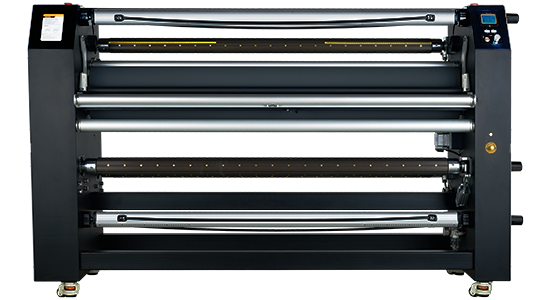

The industrial laminating and cutting machine MF1700-F1 PLUS shows MEFU latest technology, its fully function SMART PRO system provides various possibilities for customers with unbeaten performance.

You can operate the machine with our unique SMART PRO system, such as lamination statistics, height & pressure adjustment, overloading alarming device, makes it the most powerful machine ever. Its incredible speed of 50m/min can finish one roll within 1 min together with the laser tracking vertical cutting.
Details
1
2
3
4
1.
Smart Pro System
Auto Slow-down/Stop.
Lamination statistics.
Alarming System.
2.
Swing in & out air shafts
Easy for heavy rolls loading and unloading.
3.
Laser tracking vertical cutting
Advanced laser positioning and cutting device.
4.
150mm silicon rollers
Amazing speed up to 50m/min.
Performance

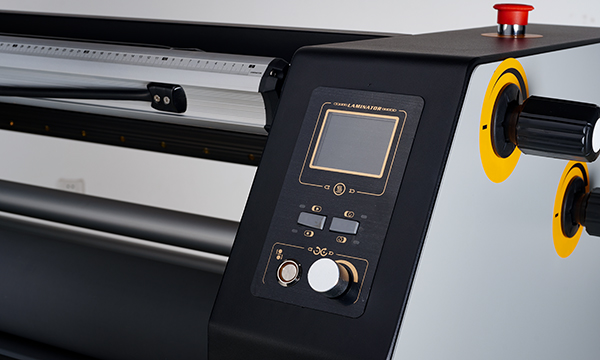

Smart Pro System —— Front Panel
Speed, temp, and lamination statistic: easy to check figures of set temp, real temp, and button speed, as well as find your lamination records in 30 days
Auto Slow-down and Stop when medias come to an end
Alarming for stop, safety protection, and overloaded media
Dual foot-pedal (one for up and down roller, the other for lamination)
Date and time display

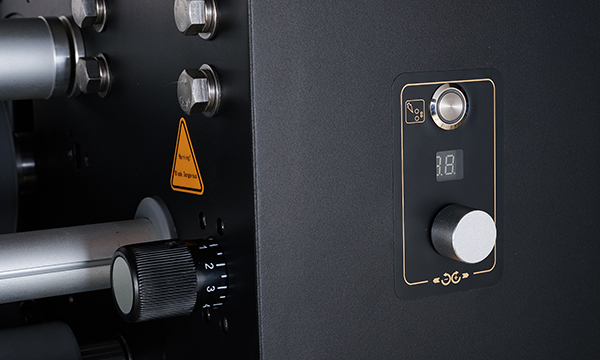

Smart Pro System —— Rear Panel
Automatic cutting correction, active by button on rear display, automatic correction and track cutters, more precise and have good finishes
Speed statistics, show button speed, which is convenient to adjust machine speed
Cutting active by button, easy to use
Laser positioning device
Vertical cutting correction
Auto track and correction during laminating and cutting
Swing in & out air shafts
Swing in and out air shafts, easy for heavy rolls loading and unloading
Air tension button for locked shafts and air-filled, convenient to use
Tension feeding rod
Control by button on front panel
Feeding tension has been added for better finishes

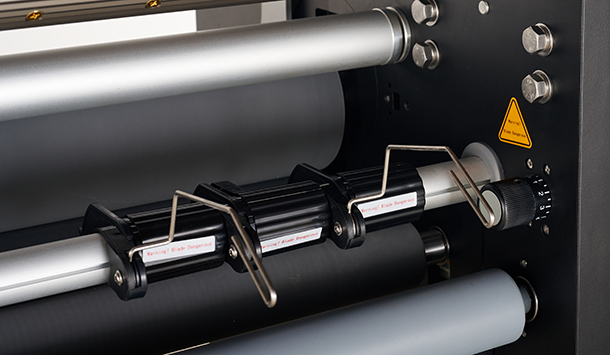

Safety vertical cutters
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade
Upgraded with two paddles on 2 single trimmer holders
Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m
Parameter
Pro Series MF1700-F1 PLUS MF1700-F2 MF1700-C3
Smart System PRO ENTRY (Option for PRO) ENTRY (Option for PRO)
Front Panel Speed and temperature Speed and temperature Speed and temperature
Rear Panel Speed Speed Speed
Lamination Statistics Yes Yes Yes
Auto Stop Yes None None
Alarm Yes None None
Foot Pedal Multi-functions dual foot pedal  Single foot pedal  Single foot pedal
Max Lam Width 1630mm/64'' 1630mm/64'' 1630mm/64''
Max Lam Thickness 28mm/1.1'' 28mm/1.1'' 28mm/1.1''
Max Speed 50m/min 20m/min 20m/min
Heating Top Heated Dual or Top Heated Top Heated
Max Temp 60°C 120°C or 60°C 60°C
Up and Down Pneumatic Pneumatic Pneumatic
Roller Silicon(150mm) Silicon(130mm) Silicon(130mm)
Trimmer Holder 2 Single and
1 Double Central blades
2 Single and
1 Double Central blades
2 Single and
1 Double Central blades
Power Input 2000W 5200W/2800W/1600W 1600W
N.W. 500KGS 260KGS 180KGS

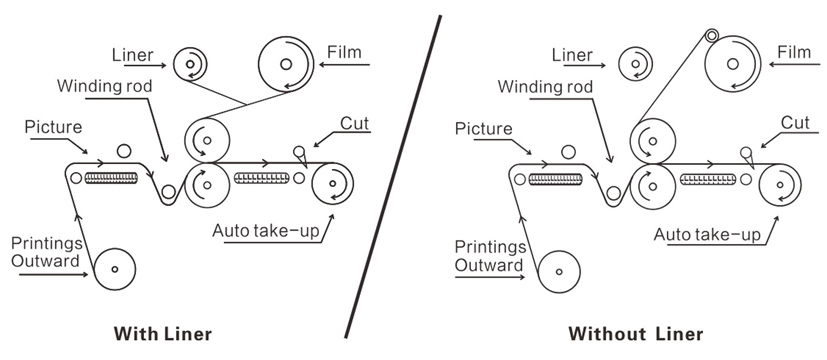

Process
