Precautions For Use And Maintenance Of Laminating Machine

Precautions For Use And Maintenance Of Laminating Machine

The emergence of laminating machines has provided a solution for protecting our important items.

Whether it is for materials such as posters and banners that need to be more durable and beautiful or for photos and paintings that need to be waterproof, anti-fouling, and anti-scratch protection, laminating is a great way. When we have a laminating machine, how should we use and maintain it correctly?

How to use the laminating machine?

Different types of machine laminations are required for different laminating materials.


Roll-to-roll laminating machine

The roll-to-roll laminating machine is one of the most popular laminating machines at present. The roll paper to be laminated is assembled on the lamination machine for direct lamination, and then the roll is collected. The working principle of the roll-to-roll laminating machine is to bond two wound substrates (such as paper, film, etc.) together under heating and pressure, and then cut or rewind the output.

Features of fully automatic roll-to-roll laminating machine:

The pneumatic button controls the pressure of the roller.

Automatic collection of waste and finished products.

The tension of the unwinding shaft and the receiving shaft can be adjusted.

The roll can rotate forward and reverse, and the speed can be adjusted.

The receiving motor and the laminating machine motor can be controlled separately.

The heating temperature is 0-60°, and both cold and hot laminating can be heated.

It can be used for laminating between rolls and for double-sided laminating.

The spacing between the upper and lower laminating rollers is controlled by a servo motor and pneumatic pressure, and the adjustment accuracy is 0.01mm.

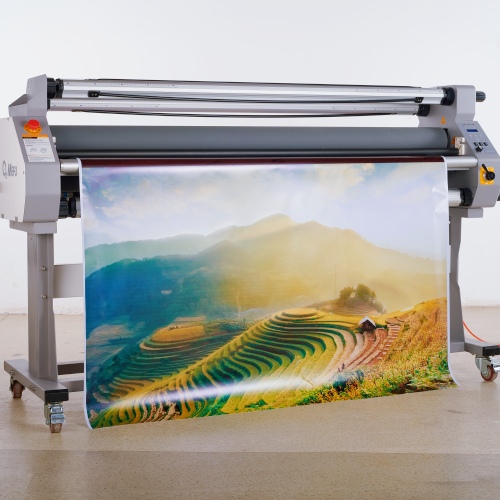

Wide format laminating machine

As the name suggests, a wide-format laminating machine is a device used for laminating large-format materials. The wide application of wide-format laminating machines in industries such as advertising printing and wedding photo post-production makes it the first choice for large-format printed products.

Features of wide-format laminating machine:

High-quality heavy-duty silicon roller: 130mm Silicon Roller provides sufficient pressure.

Dual-side control buttons: The pressure and height of the rubber roller can be adjusted independently and accurately on both sides.

Multiple laminating materials: Support the use of different types of laminating materials, such as glossy film, matte film, etc.

Temperature and pressure control: Accurately control the temperature and pressure during the laminating process to ensure the quality and effect of the laminating.

Large-format processing: Able to process materials with larger widths, usually suitable for large-format printed materials such as wide posters, billboards, and exhibition boards.

How to maintain and maintain the laminating machine?

No matter what machine it is, maintenance and maintenance are essential steps. In addition to increasing the service life of the laminating machine, maintaining the lamination machine can also ensure that the machine can run stably.

Laminating machine maintenance and maintenance

Daily maintenance of the laminating machine

Daily maintenance-cleaning

Surface cleaning: Clean the surface of the laminating machine after use to remove dust and residues.

Silicon roller cleaning: Silicon rollers easily absorb dust, remove the adhered residual glue and dust, and ensure that the laminating effect is not affected by the next use.

Blade cleaning: Laminating machines with cutting functions are equipped with cutting knives. Keep the blade clean and rust-free to ensure smooth cutting.

Daily maintenance-inspection

Electrical system inspection: Check the working status of electrical systems such as heating elements, motors, control panels, etc. to ensure that there is no damage or abnormality.

Mechanical parts inspection: Check the mechanical parts such as foot switches, control buttons, bearings, etc. to ensure that there is no looseness, wear, or failure.

Regular maintenance of the laminating machine

Regular maintenance-calibration

Temperature calibration: Regularly calibrate the temperature control system of the laminating machine to ensure that the heating temperature is accurate.

Pressure calibration: Check and calibrate the pressure setting of the pressure roller to ensure uniform laminating pressure.

Regular maintenance-replacement

Replacement of wearing parts: Regularly check and replace severely worn parts.

Spare parts reserve: Reserve commonly used wearing parts for timely replacement to reduce downtime.

Safety operating procedures and precautions

The operator of the lamination machine must carefully read the machine manual, fully understand the main structure, performance, and operation methods of the machine, and conduct random training if conditions permit. Only after passing the examination can he get on the machine. And comply with all warning signs posted on the equipment, improve safety awareness, prevent accidents, and ensure the personal safety of the operator.

Special tool maintenance: Use special tools for maintenance and care to avoid laminating equipment damage caused by using inappropriate tools.

Regular training: Operators are trained regularly to ensure that they master the correct operation and maintenance skills and improve the efficiency of equipment use.

Power-off operation: Before repair and maintenance, the power supply must be cut off to prevent electric shock or mechanical injuries. The power supply should also be cut off after the work is completed.

Comprehensive protection: The silicon roller of the thermal laminating machine is a heated silicon roller with a surface temperature of more than 100°C. Do not touch the surface of the rubber roller with your skin when heating. At any time, the staff cannot put their hands or other parts of the body close to the area between the rubber rollers to prevent crushing or burning.
